# Facet Search

Use smart drop downs to find a vehicle.

The Vehicle Facets API narrows a vehicle down by its attributes, one selection at a time. Every attribute returned on a vehicle record can now be used two ways: as a `facet` to get the list of available values and counts, and as an optional filter to narrow the results.

That means you can drive a drop-down off `model_year`, filter by `num_doors=5`, or restrict to `fuel_type=Electric`, using the same request pattern as `make`, `model` and `badge`. All filters are optional, and every field works in every region where that data is populated: `au`, `nz`, `uk`, `my` and `eu`.

### Supported facets <a href="#supported-facets" id="supported-facets"></a>

36 fields are supported. Example values come from a 2020 Mercedes-Benz A45 AMG S (W177).

#### Identity <a href="#identity" id="identity"></a>

<table data-header-hidden data-search="false"><thead><tr><th></th><th></th><th></th></tr></thead><tbody><tr><td>Parameter</td><td>Type</td><td>Example</td></tr><tr><td><code>year</code></td><td>string</td><td><code>2020</code></td></tr><tr><td><code>make</code></td><td>string</td><td><code>Mercedes-Benz</code></td></tr><tr><td><code>model</code></td><td>string</td><td><code>A-Class</code></td></tr><tr><td><code>badge</code></td><td>string</td><td><code>A45 AMG S</code></td></tr><tr><td><code>series</code></td><td>string</td><td><code>W177</code></td></tr><tr><td><code>model_year</code></td><td>string</td><td><code>MY20</code></td></tr><tr><td><code>release_month</code></td><td>number</td><td><code>2</code></td></tr><tr><td><code>release_year</code></td><td>number</td><td><code>2020</code></td></tr><tr><td><code>import_status</code></td><td>string</td><td><code>Sold Locally</code></td></tr></tbody></table>

#### Body <a href="#body" id="body"></a>

<table data-header-hidden data-search="false"><thead><tr><th></th><th></th><th></th></tr></thead><tbody><tr><td>Parameter</td><td>Type</td><td>Example</td></tr><tr><td><code>body_type</code></td><td>string</td><td><code>Hatchback</code></td></tr><tr><td><code>body_config</code></td><td>string</td><td>Body configuration, where recorded (commercial vehicles)</td></tr><tr><td><code>roof_type</code></td><td>string</td><td>Roof style, where recorded</td></tr><tr><td><code>num_doors</code></td><td>number</td><td><code>5</code></td></tr><tr><td><code>num_seats</code></td><td>number</td><td><code>5</code></td></tr><tr><td><code>num_berths</code></td><td>number</td><td>Sleeping berths, where recorded (motorhomes, campervans)</td></tr></tbody></table>

#### Drivetrain and engine <a href="#drivetrain-and-engine" id="drivetrain-and-engine"></a>

| Parameter           | Type   | Example                                            |
| ------------------- | ------ | -------------------------------------------------- |
| `transmission`      | string | `Dual Clutch Automatic (DCT)`                      |
| `transmission_type` | string | `Automatic`                                        |
| `num_gears`         | number | `8`                                                |
| `drive`             | string | `AWD`                                              |
| `drive_type`        | string | `Four Wheel Drive`                                 |
| `fuel`              | string | `Petrol`                                           |
| `fuel_type`         | string | `Petrol`                                           |
| `engine`            | string | `Piston`                                           |
| `engine_type`       | string | `Piston`                                           |
| `num_cylinders`     | number | `4`                                                |
| `capacity_cc`       | number | `1991`                                             |
| `power_kw`          | number | `310`                                              |
| `torque_nm`         | number | `500`                                              |
| `range`             | number | `699`                                              |
| `battery_kwh`       | number | Battery capacity, where recorded (EVs and hybrids) |

#### Dimensions and mass <a href="#dimensions-and-mass" id="dimensions-and-mass"></a>

| Parameter           | Type   | Example                                                    |
| ------------------- | ------ | ---------------------------------------------------------- |
| `wheelbase`         | string | Wheelbase description, where recorded                      |
| `wheelbase_type`    | string | Wheelbase category, where recorded                         |
| `num_axles`         | number | Axle count, where recorded (heavy and commercial vehicles) |
| `weight_kg`         | number | Vehicle weight, where recorded                             |
| `length_mm`         | number | Overall length, where recorded                             |
| `max_laden_mass_kg` | number | Maximum laden mass, where recorded                         |

{% hint style="info" %}
**Note:** not every parameter is recorded for every vehicle category. For example, we don't record `num_berths` for cars, so a car search filtered on it returns no results.
{% endhint %}

The paired fields (`transmission` and `transmission_type`, `drive` and `drive_type`, `fuel` and `fuel_type`, `engine` and `engine_type`) give you a detailed value and a grouped value. Use the grouped value for a broad first drop-down, for example Automatic vs Manual, then the detailed value to refine.

### How facets and filters work <a href="#how-facets-and-filters-work" id="how-facets-and-filters-work"></a>

Any field in the tables above can be passed in two places on the same request.

* **As the facet.** `facet=model_year` returns every available `model_year` value with a vehicle count. Request several at once with a comma-separated list: `facet=badge,series,transmission`.
* **As a filter.** `model_year=MY20` limits results to vehicles with that value. Combine as many filters as you like; they are joined with AND.

Rules that apply to every field:

* All filters are optional. Omit any field you don't need.
* Pass string values exactly as the facets endpoint returns them, URL-encoded (`transmission=Dual%20Clutch%20Automatic%20(DCT)`).
* Pass numeric values as whole numbers with no units (`power_kw=310`, not `310kW`).
* `limit` caps the values returned per facet, up to 100.
* Every field may not be available in every region. Where a region doesn't record a field (for example `num_berths` on passenger vehicles), the facet returns an empty list and the filter matches no vehicles.

### Endpoints <a href="#endpoints" id="endpoints"></a>

Both endpoints accept the same 36 filter parameters.

| Endpoint                         | Returns                                      | Parameters                                             |
| -------------------------------- | -------------------------------------------- | ------------------------------------------------------ |
| `GET /v2/vehicles/facets`        | Values and counts for the requested facet(s) | `facet`, `region`, any filter, `limit`, `reference_id` |
| `GET /v2/vehicles/facets/search` | Matching vehicle records                     | `region`, any filter, `reference_id`                   |

| Parameter           | Type             | Notes                                                                    |
| ------------------- | ---------------- | ------------------------------------------------------------------------ |
| `facet`             | string           | Field(s) to aggregate. Any supported field, comma-separated for several. |
| `region`            | string, enum     | `au`, `nz`, `uk`, `my`                                                   |
| Any supported field | string or number | Optional filter. See Supported facets.                                   |
| `limit`             | number, max 100  | Maximum values returned per facet.                                       |
| `reference_id`      | string           | Optional. Stored against usage records if supplied.                      |

### Facets user interface example <a href="#facets-user-interface-example" id="facets-user-interface-example"></a>

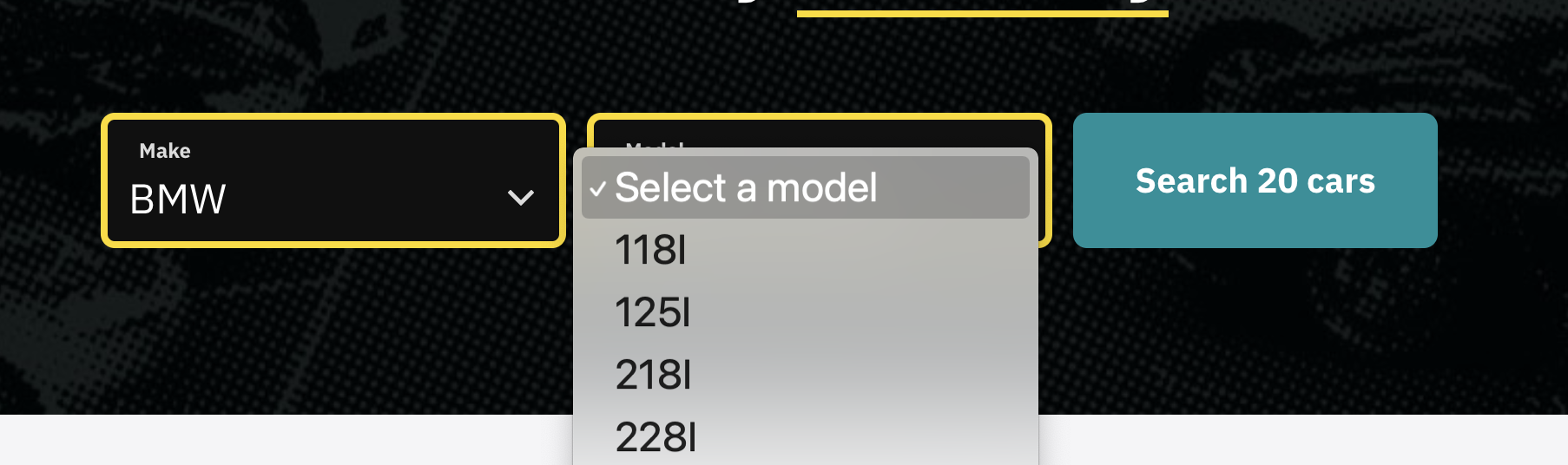

Facets feed form drop-downs: each selection filters the next list. [Westside Auto](https://www.westsideauto.com.au/) uses the Facets API this way on its vehicle search.

The new fields let you go past Make, Model, Badge. A buyer looking for a seven-seat diesel can start with `num_seats` and `fuel_type`, then pick from the makes that actually match.

For a preview of facets inside the AutoGrab web app, see the [video walkthrough](https://www.loom.com/share/a19c3e50f95f4ed286583956c2e22693).

### Worked example <a href="#worked-example" id="worked-example"></a>

The goal: get your user to a short list of vehicles, one drop-down at a time. Each step adds the previous selection as a filter and asks for the next facet. Counts in the responses below are trimmed and illustrative.

#### 1. Get makes <a href="#id-1-get-makes" id="id-1-get-makes"></a>

```
GET /v2/vehicles/facets?region=au&facet=make
```

```json
{
  "success": true,
  "make": [
    { "value": "Abarth", "count": 47 },
    { "value": "Alfa Romeo", "count": 713 },
    { "value": "Mercedes-Benz", "count": 4212 }
  ]
}
```

Your user picks *Mercedes-Benz*.

#### 2. Get model years (new) <a href="#id-2-get-model-years-new" id="id-2-get-model-years-new"></a>

Narrow by model year before model. This is useful when the user knows their car's compliance or model year but not the exact model name.

```
GET /v2/vehicles/facets?region=au&make=Mercedes-Benz&facet=model_year
```

```json
{
  "success": true,
  "model_year": [
    { "value": "MY19", "count": 188 },
    { "value": "MY20", "count": 203 },
    { "value": "MY21", "count": 176 }
  ]
}
```

Your user picks *MY20*.

#### 3. Get models <a href="#id-3-get-models" id="id-3-get-models"></a>

```
curl --location 'https://api.autograb.com.au/v2/vehicles/facets?facet=model&region=au&make=Mercedes-Benz&model_year=MY20' \
--header 'ApiKey: YOURKEY'
```

```json
{
  "success": true,
  "model": [
    { "value": "A-Class", "count": 14 },
    { "value": "C-Class", "count": 21 },
    { "value": "GLC", "count": 17 }
  ]
}
```

Your user picks *A-Class*.

#### 4. Refine with several facets at once (new) <a href="#id-4-refine-with-several-facets-at-once-new" id="id-4-refine-with-several-facets-at-once-new"></a>

Ask for more than one facet in a single call to fill several drop-downs together.

```
GET /v2/vehicles/facets?region=au&make=Mercedes-Benz&model_year=MY20&model=A-Class&facet=badge,body_type,transmission_type
```

```json
{
  "success": true,
  "badge": [
    { "value": "A180", "count": 2 },
    { "value": "A250", "count": 4 },
    { "value": "A45 AMG S", "count": 2 }
  ],
  "body_type": [
    { "value": "Hatchback", "count": 9 },
    { "value": "Sedan", "count": 5 }
  ],
  "transmission_type": [
    { "value": "Automatic", "count": 14 }
  ]
}
```

Your user picks *A45 AMG S* and *Hatchback*.

#### 5. Load the vehicles <a href="#id-5-load-the-vehicles" id="id-5-load-the-vehicles"></a>

Once the counts are small, pass the same filters to `/facets/search` to get the full records.

```
curl --location 'https://api.autograb.com.au/v2/vehicles/facets/search?region=au&make=Mercedes-Benz&model_year=MY20&model=A-Class&badge=A45%20AMG%20S&body_type=Hatchback' \
--header 'ApiKey: YOURKEY'
```

```json
{
  "success": true,
  "vehicles": [
    {
      "region": "au",
      "title": "2020 Mercedes-Benz A-Class A45 AMG S Auto 4MATIC",
      "year": "2020",
      "make": "Mercedes-Benz",
      "model": "A-Class",
      "badge": "A45 AMG S",
      "series": "W177",
      "model_year": "MY20",
      "release_month": 2,
      "release_year": 2020,
      "body_type": "Hatchback",
      "transmission": "Dual Clutch Automatic (DCT)",
      "transmission_type": "Automatic",
      "fuel": "Petrol",
      "drive": "AWD",
      "drive_type": "Four Wheel Drive",
      "num_doors": 5,
      "num_seats": 5,
      "num_gears": 8,
      "num_cylinders": 4,
      "capacity_cc": 1991,
      "power_kw": 310,
      "torque_nm": 500,
      "import_status": "Sold Locally"
    }
  ],
  "is_paginated": false,
  "count": 1
}
```

The record above is trimmed. Search responses return every field listed in Supported facets.

#### Filtering on numbers <a href="#filtering-on-numbers" id="filtering-on-numbers"></a>

Numeric fields work the same way. This returns every five-door, five-seat AWD petrol hatch in AU with 310 kW:

```
GET /v2/vehicles/facets?region=au&facet=model&body_type=Hatchback&num_doors=5&num_seats=5&drive=AWD&fuel_type=Petrol&power_kw=310
```

### Errors and limits <a href="#errors-and-limits" id="errors-and-limits"></a>

Watch the counts before you call `/facets/search`. If too many vehicles match, the search is rejected:

```json
{
  "error": true,
  "message": "Too many vehicles, you must return at least make, model, badge, series, year"
}
```

The new filters narrow results, but they don't replace this requirement. Filtering on `model_year` or `power_kw` alone still returns this error; add the identity filters, or keep refining with facets until the count is small.

Each facet returns at most 100 values. Set `limit` for a lower cap.


---
