AutoGauge

AutoGrabs dynamic pricing indicator for your website

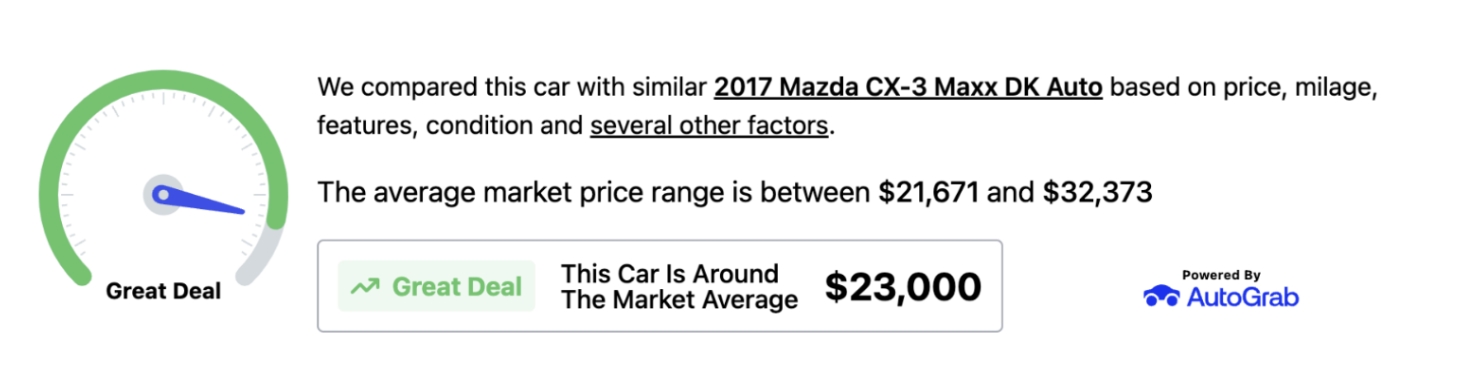

The AutoGrab AutoGauge is an iFrame widget that displays a valuation as well as some high-level market data for a vehicle listing. We host a configuration file that controls a range of labelling and styling variables that we will guide you through as part of your integration.

You can access this over API if you would like to make your own implementation over the iFrame, read more here.

Query Parameters

Since the gauge operates in an iFrame, it is controlled using query parameters. These parameters are separated into two distinct groups: Base parameters and vehicle-type parameters. The base parameters are applicable for all use cases, whereas you only need to choose one set of vehicle-type parameters in order to use the gauge.

Base parameters

api_key: string; Your Gauge API Key (locked to your provided domains).

region: Region; The country code (‘au’, ‘nz’, 'uk', or ‘my’)

odometer: number; The odometer reading for the vehicle you are valuing

listing_price: number; The listing price for the vehicle you are valuing

layout?: string; The desired layout style (‘horizontal’ or vertical). If a layout type is not provided, this will default to ‘vertical’.

Vehicle Type Parameters

These parameters are used to determine the type of vehicle that you are valuing, and only one of these sets of properties are required to match a vehicle. Depending on your use case, it may be easier to use certain sets of parameters over others.

vehicle_id The AutoGrab vehicle ID

marketplace and marketplace_id The marketplace domain name where the vehicle is publicly listed (e.g. ‘carsales.com.au’) and the unique listing ID on the marketplace (e.g. ‘OAG-AD-216621’)

vin The vehicle's VIN number

rego The registration plate (e.g. ‘BMT038’).

vehicle_description The plain text vehicle description (e.g. ‘2019 Volkswagen Polo 85TSI Comfortline Auto MY19’)

Example Usage

With VIN

<iframe
src="http://localhost:3000?region=uk&odometer=10000&listing_price=100
00&vin=MM0DK2W7A0W207162&api_key={yourkey}"
/>

With Rego & State

<iframe
src="http://localhost:3000?region=uk&odometer=10000&listing_price=100
00&rego=AOM964&state=VIC&api_key={yourkey}"
/>

With Marketplace/Marketplace ID

<iframe
src="http://localhost:3000/?region=uk&odometer=10000&listing_price=10
000&marketplace=carsales.com.au&marketplace_id=OAG-AD-21662144&api_ke
y={yourkey}"
/>

With Vehicle Description

<iframe
src="http://localhost:3000/?region=uk&odometer=10000&listing_price=10
000&vehicle_description=2017%20Mazda%20CX-3%20Maxx&api_key={yourkey}"
/>

Local Testing

To test the gauge locally, simply create an index.html file with the following contents:

<!doctype html>
<html lang="en">
<head>
<meta charset="UTF-8" />
<meta name="viewport" content="width=device-width,
initial-scale=1.0" />
<title>Iframe Test</title>
</head>
<body>
<iframe
src="https://gauge.autograb.com.au?region=uk&odometer=10000&listing_p
rice=26005&vin=MM0DK2W7A0W207162&api_key={yourkey}"
width="100%"
height="600px"
></iframe>
</body>
</html>

You can then host this file on localhost:8080 using the npx-server package. You can use the ‘npx’ command line tool to do this:

> npx html-server ./index.html

The localhost:8080 URL is whitelisted for your API key, therefore enabling this workflow.

Event Listeners

If the Gauge is successfully rendered, we send a message via the iframe postMessage function. The way for a client to listen for the event is as follows:

window.addEventListener('message', event => {
if (
event.data === 'AUTOGRAB_GAUGE_SHOW' &&
event.origin === 'https://gauge.autograb.com.au'
) {
// show the gauge iframe element
}
});
If there is a redirect to the 500 page, we send a message via the iframes postMessage
function.. The 500 page is used for any error that occurs server side, as well as if the gauge
valuation is below the threshold defined in your configuration (this is per API key).
The way for a client to listen for the event is as follows:
window.addEventListener('message', event => {
if (
event.data === 'AUTOGRAB_GAUGE_HIDE' &&
event.origin === 'https://gauge.autograb.com.au'
) {
// hide the gauge iframe element
}
});

There is no minimum valuation threshold set per API key. We can configure this to your requirements.

PreviousEmbeddable Basics NextValuation Widget

Last updated 6 months ago
